Close-ups of the printed circuit boards in the CCM-202 Hybrid Cable Modem

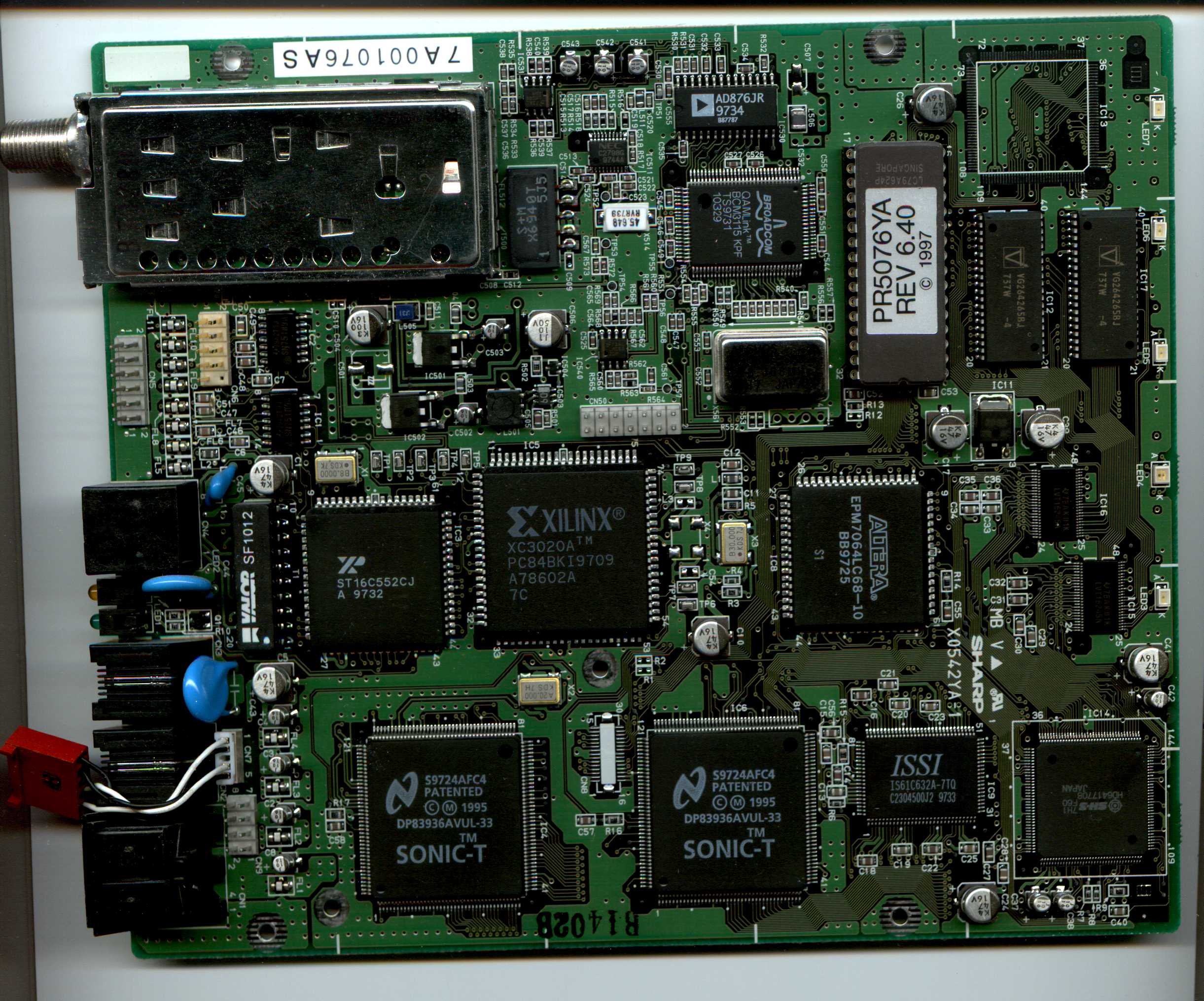

Top side of the main board
Xilinx, Altera, Broadcom, ISSI, National, Hitachi, Analog Devices.. it looks like everyone was invited to this party!

Medium image 69K
Large detailed image 541K

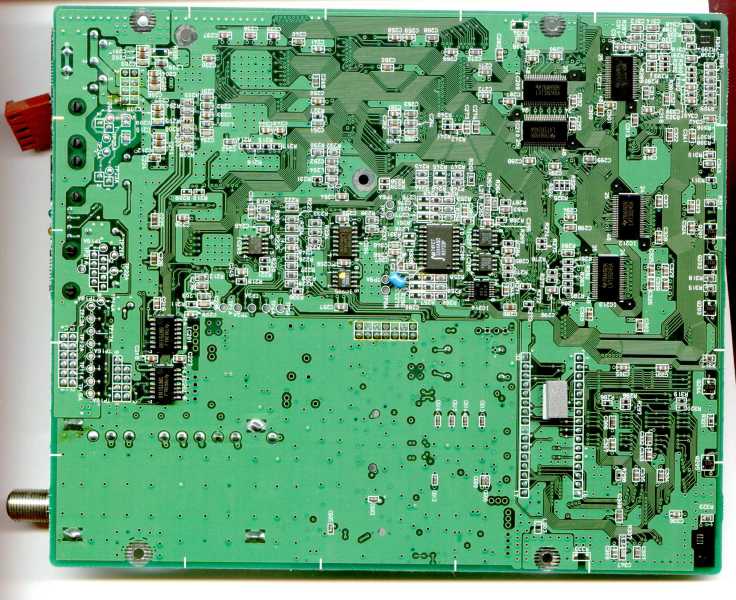

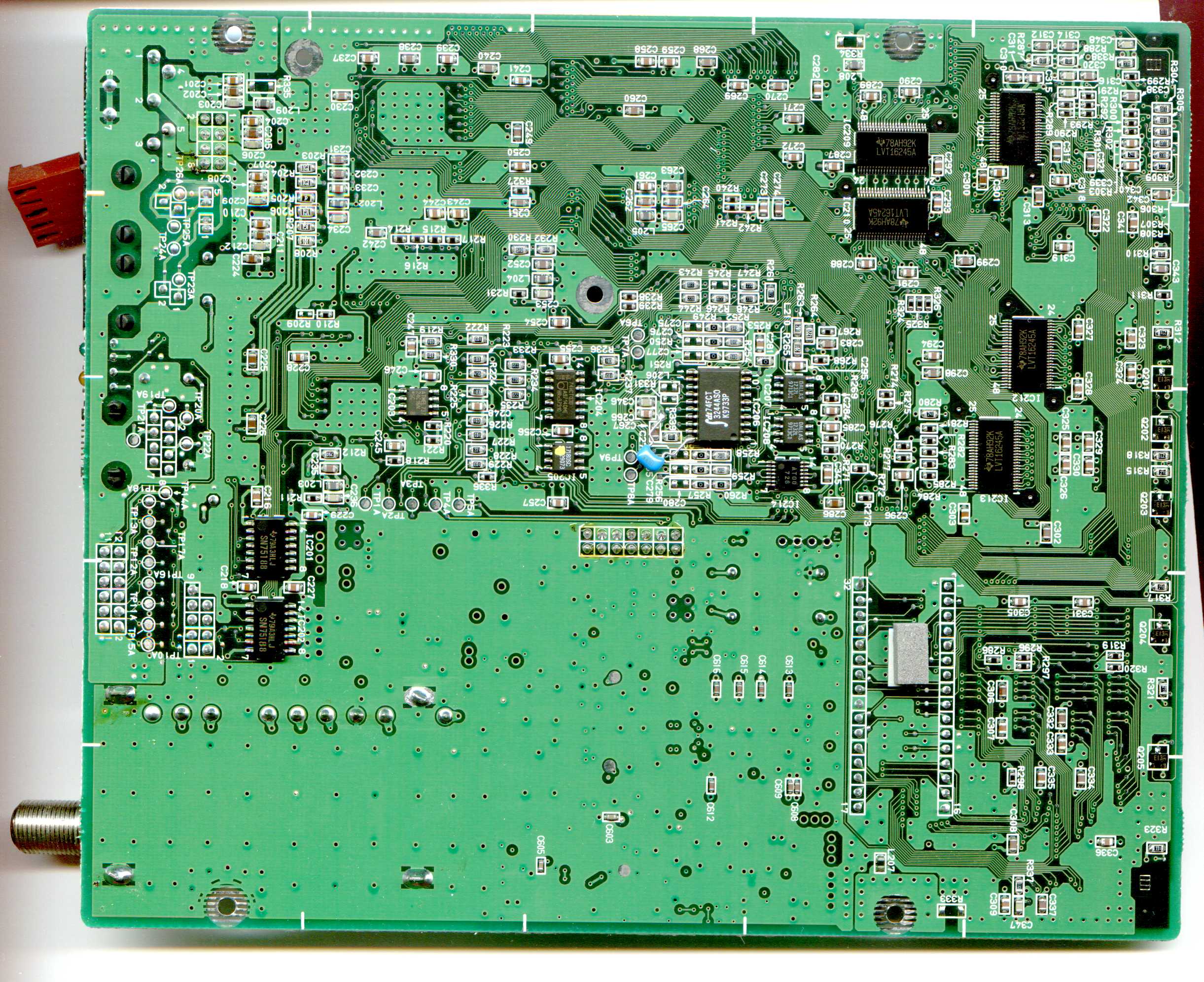

Bottom side of the main board
Sorry, the value of the capacitor disappeared after the jpg conversion. If you are interested in the value, email me.

Medium image 85K
Large detailed image 718K

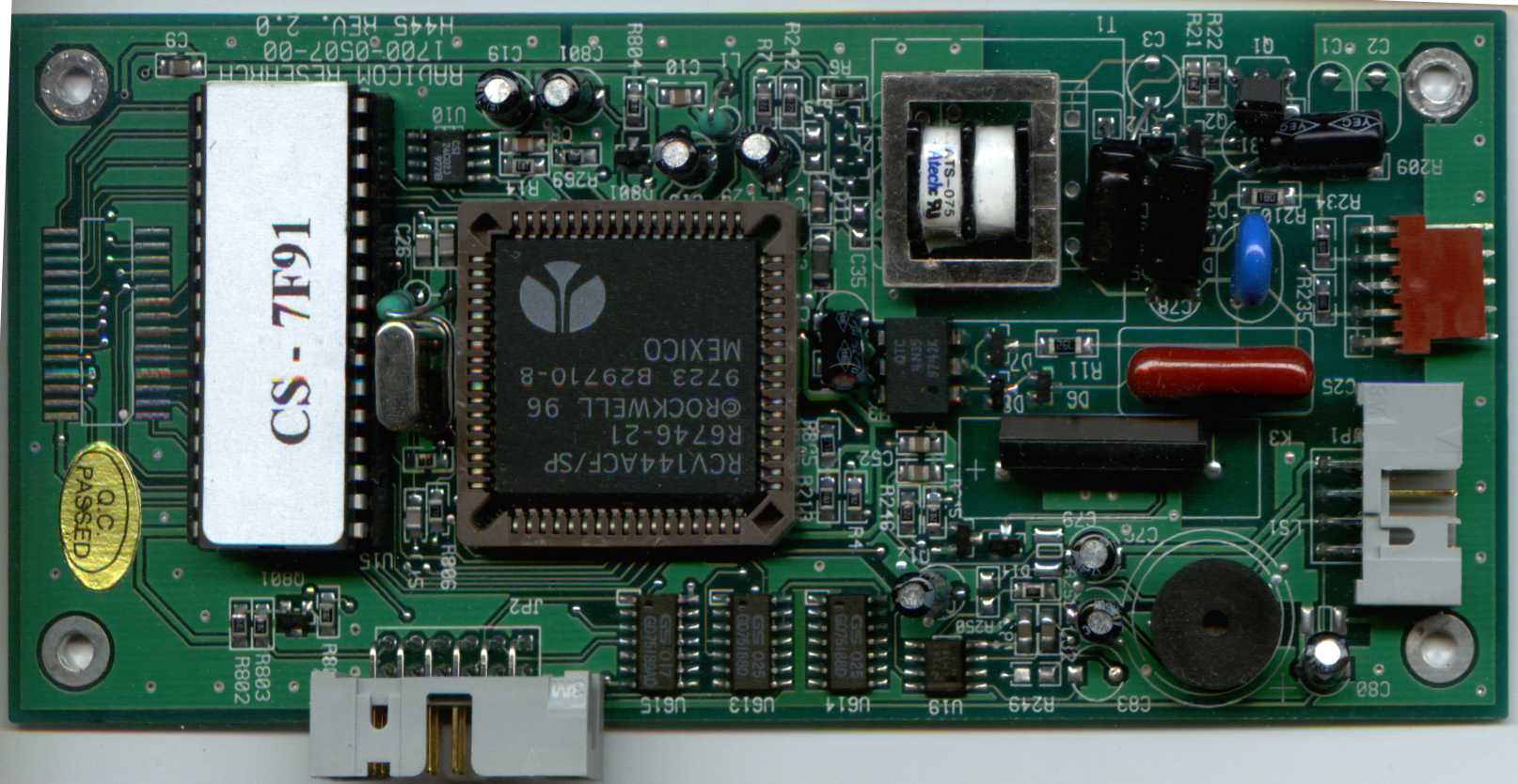

Top side of the modem board

Designed  by Radicom Reserach
1700-0507-00 H445 Rev 2.0

Large detailed image 131K

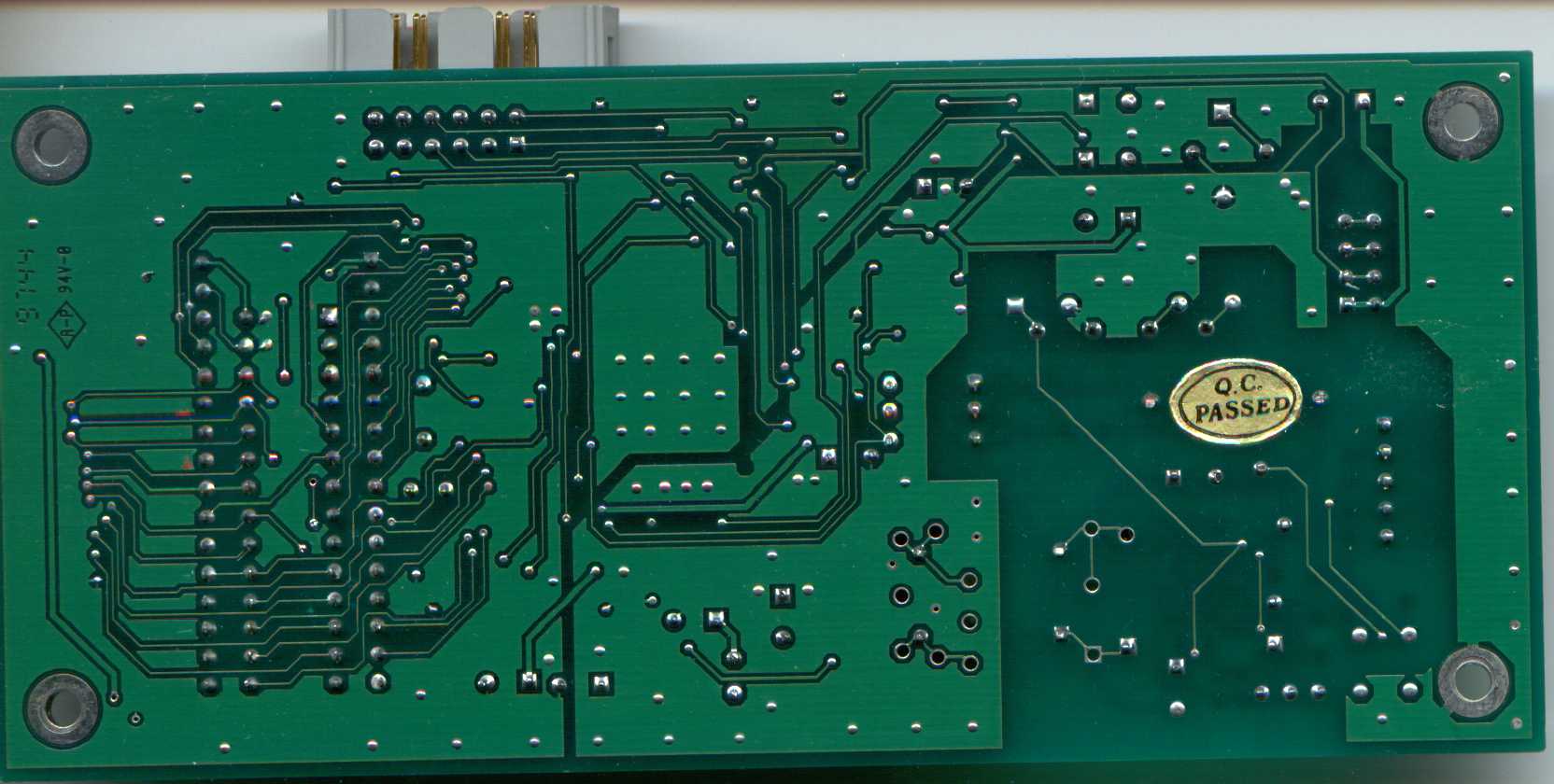

Bottom side of the modem board

Q.C Passed!

Large detailed image 107K
